Tethering Codebug And Glowbugs With Python

Introduction

Reach the full potential of your CodeBug with Tethered mode. You can make programs that will be able to:

  • Respond to Minecraft

  • Control CodeBug from the web

  • Display alerts and the time on CodeBug

  • Turn CodeBug into an Internet of Things device

To use CodeBug Tether you will need to load it with a special project file. Once this is done you can control CodeBug and GlowBugs with Python over a USB connection.

You will need
CodeBug CodeBug
Micro USB cable
Computer

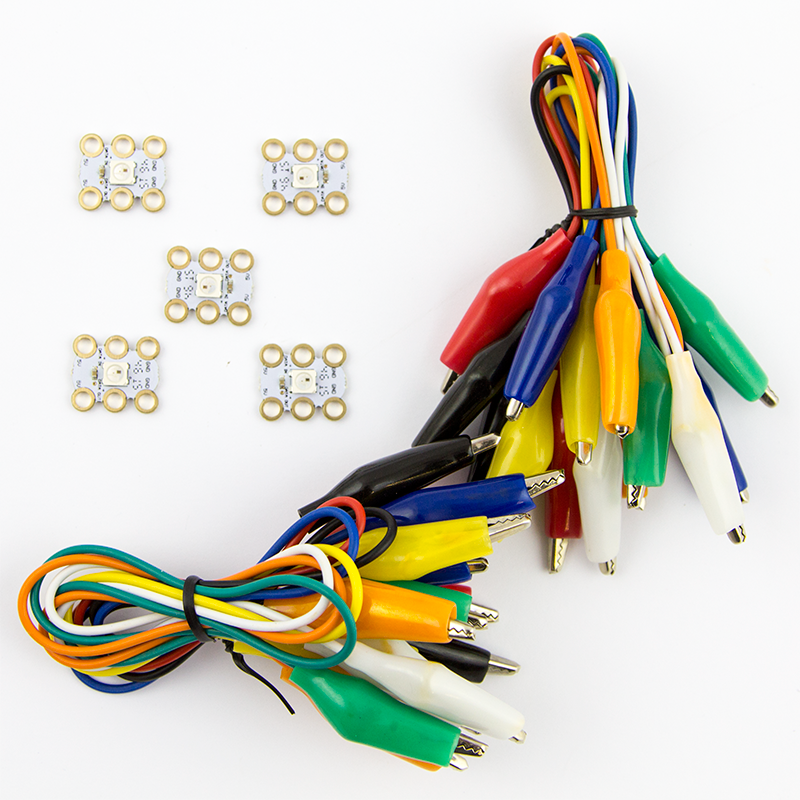

Crocclips
GlowBugs x5 GlowBugs x5

Set up Tethered mode

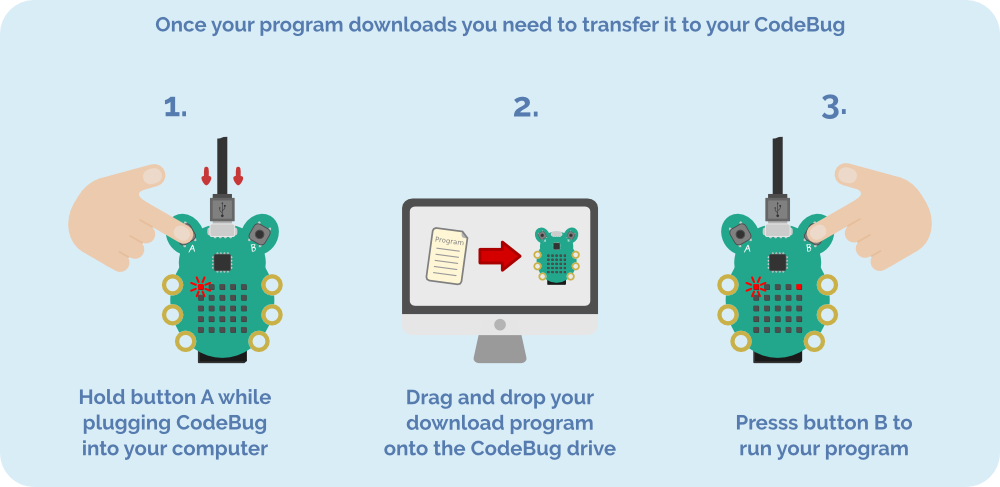

For tethered mode you need to load your CodeBug with a special project file. This is done in the same way as a regular CodeBug program (refer to the download guide for details).

Download the CodeBug tether project file and load it onto your CodeBug.

Next, you need to install some Python modules.


Python libraries for Raspberry Pi & Linux

You must now install the Python libraries that will talk to your CodeBug. Python should already be installed but for good measure:

sudo apt-get install python3

To install pip, securely download get-pip.py, then run the following:

python get-pip.py

To install codebug_tether, open up a terminal and type:

pip install codebug_tether

Python libraries for Windows

Download and install the latest version of Python 3 from here. Make sure you tick the Add Python 3 to environment variables checkbox.

To install codebug_tether, open up a command prompt and type:

pip install codebug_tether

Python libraries for MaxOSX

Download and install Xcode (if you haven’t already) and then enable the command line tools by running (in a terminal):

xcode-select --install

Now install Homebrew (a package manager for OSX):

/usr/bin/ruby -e "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install)"

The script will explain what changes it will make and prompt you before the installation begins. Once you’ve installed Homebrew, insert the Homebrew directory at the top of your PATH environment variable. You can do this by adding the following line at the bottom of your ~/.profile file:

export PATH=/usr/local/bin:/usr/local/sbin:$PATH

Now, we can install Python 3:

brew install python3

This will take a minute or two.

To install codebug_tether, open up a terminal and type:

pip install codebug_tether

Connecting your GlowBugs

To attach GlowBugs to CodeBug, attach a crocclip from GND on CodeBug to GND on the left side of the GlowBug, repeat this for PWR from CodeBug to the 5V on the left side of the GlowBug. Then connect a crocclip from leg 3 on CodeBug to the DATA IN leg on the GlowBug. You can connect more GlowBugs to the chain by connecting the right side of the previous GlowBug to the left side of the next GlowBug, as shown in the picture below.


Your own tethered CodeBug programs

You can write your own tethered CodeBug programs using Python and a few simple commands to control your CodeBug. In the next steps you will start an interactive Python session and enter commands to interact with your tethered CodeBug. Don’t forget you need the tethered mode project installed on your CodeBug for them to work.

Open a Terminal and type:

sudo python3

You will see the python prompt appear >>> Now type:

 from codebug_tether import CodeBug
    from  codebug_tether.colourtail import CodeBugColourTail

    cb = CodeBug()


cb.set_pixel(2, 2, 1)

You will see the center LED - at position (2, 2) - light up on CodeBug.

NB: On some computers, or if you have multiple CodeBugs you will have to put the address of your CodeBug in brackets. More details are in the section Addressing Your CodeBugs.

To set up the GlowBugs

colourtail = CodeBugColourTail(cb)


colourtail.init()

Now try setting the colour of the first GlowBug:

colourtail.set_pixel(0, 255, 0, 0)

colourtail.update()

You will see the GlowBug connected directly to CodeBug light up red. You passed this function 4 numbers. The first number was the number of the GlowBugs, and the other 3 were red, green and blue. Note: The colour numbers need to be between 0 and 255. The update() function pushes any changes to pixel colours you have made, to the physical colour LEDs, so you can run multiple set_pixel() commands and then run update() and the pixels all change at the same time.

Try setting multiple GlowBugs at the same time:

colourtail.set_pixel(0, 0, 0, 255)

colourtail.set_pixel(1, 0, 100, 200)

colourtail.set_pixel(2, 255, 255, 0)

colourtail.update()

All 3 GlowBugs change at once right?! Try different combinations of colours and GlowBug numbers to get comfortable using this function.

You can use variables and for loops to create amazing patterns with GlowBugs.

for red in range(0,255):

for green in reversed(range(0,255):

    for pixel in range(0,9):

        colourtail.set_pixel(pixel, red, green, 0)

    colourtail.update()

Get a full list of the commands available by typing:

 help(colourtail) or

 help(cb)

You can write longer programs for tethered mode CodeBug by writing commands in your text editor and then saving and running the file in the way you did with the examples earlier.

Tethered mode gives your CodeBug access to the full processing power, functionality and network connectivity of your computer! You can use variety of powerful yet easy to use Python modules allow your CodeBug to generate random numbers, react to emails or even respond to Twitter activity.


Addressing Your CodeBugs

The CodeBug tether library has a default address for CodeBug. In most cases this will work, however if you have multiple CodeBugs connected you may need to change the address you’re using.

To do this, first open a Terminal and type the commands:

ls /dev/tty*

Plug the CodeBug back into your computer’s USB port and wait a couple of seconds. Then type the command:

ls /dev/tty*

See what address has been added to the list (you should see something like ttyACM0 for Raspberry Pi or tty.usbmodemfd141 for Mac). You may find it easier if you unplug your other USB devices first.

When you initiliase CodeBug in your Python programs, you must pass it the address you have found.

e.g.

cb = CodeBug(‘/dev/tty.usbmodemfa141’)

What next?

Add responses to Minecraft or email to your program to make a cool notification lamp.
